3.3 Experimental Lazy Graph RAG

lazy-graph-rag is an experimental seventh approach inspired by the public LazyGraphRAG design direction. It is a repo-native approximation, not Microsoft GraphRAG code and not a claim of implementation parity. It is off by default but registered for explicit testing and measured in the committed dataset ladder (see below). Its concept indexing and graph traversal are LLM-free.

The prototype is now measured in the committed 2026-07-17 dataset ladder. It participated beside all six canonical approaches on baseline, graph-native, and MITRE ATT&CK cyber-threat corpora. All 20 lazy-graph cells succeeded. The result supports keeping the approach: it tied for third on baseline, won graph-native, and tied for second on cyber while retaining low latency. It remains experimental and off by default because its untyped co-occurrence graph is a useful approximation, not a general-purpose knowledge graph.

1. Why It Is a Separate Approach

lazy-graph-rag occupies a different point from the existing retrieval paths:

Approach Index-time structure Query-time behavior
hybrid-rag Weaviate chunk vectors + BM25 Dense/lexical retrieval, TEI rerank, generation
graph-rag LightRAG LLM-extracted entities and relationships in Neo4j/vector stores LightRAG graph/vector retrieval and generation
agentic-rag Reuses vector and LightRAG indexes An LLM-controlled ReAct loop chooses retrieval tools
lazy-graph-rag Deterministic concept/co-occurrence graph over existing chunks Vector seeds followed by budgeted concept expansion and one generation call

It is not a graph-rag flavor because it does not query LightRAG, does not use LightRAG's extracted knowledge graph, and has a separate index lifecycle. It is not a hybrid-rag flavor because graph traversal changes which evidence enters the final context. It is not agentic: graph expansion is deterministic and bounded rather than selected by an LLM loop.

2. Components and Data Flow

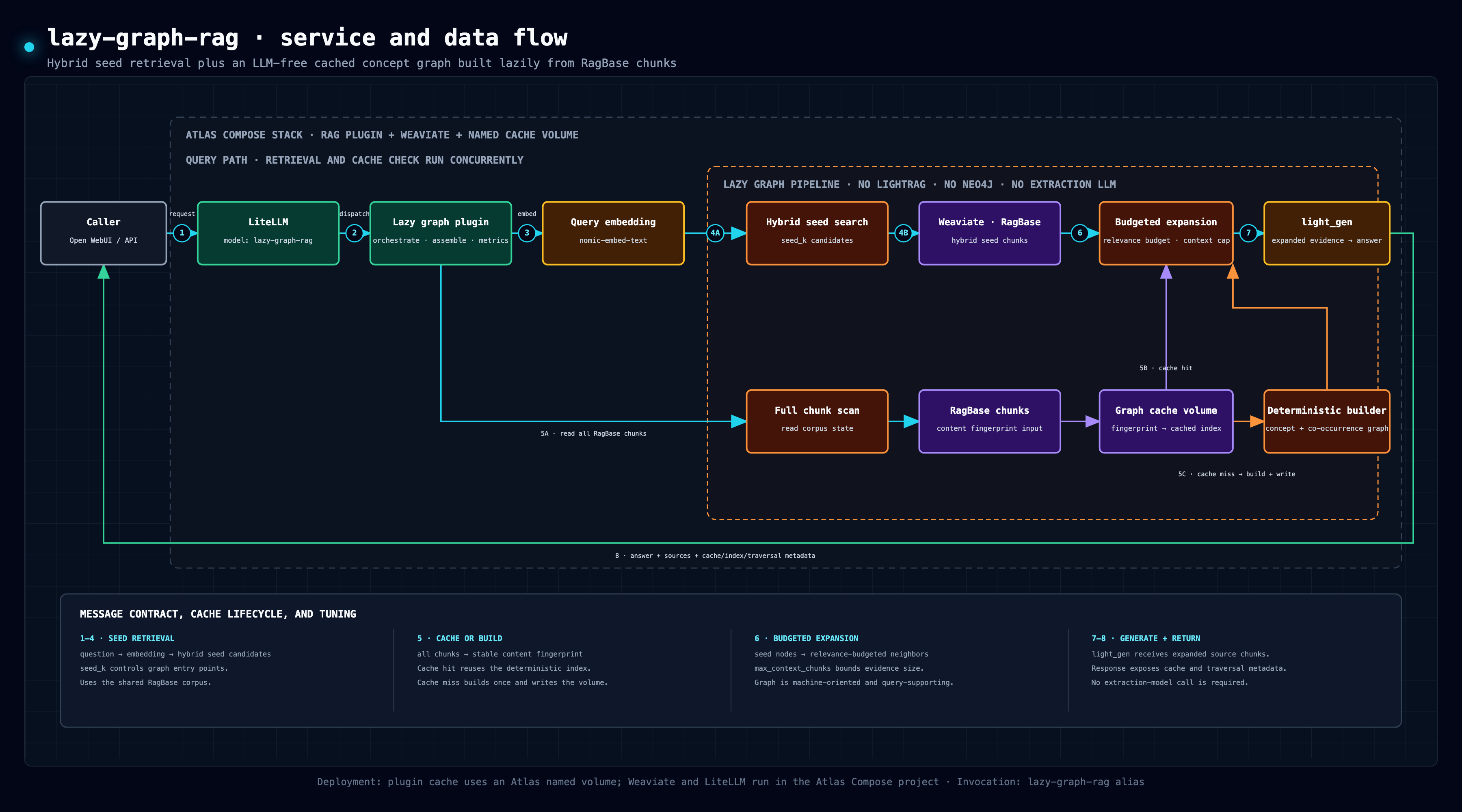

Open the full-resolution interactive diagram

lazy-graph-rag service and data flow

The implementation lives in:

  • backend_plugins/rag/common/lazy_graph.py: extraction, graph construction, serialization, cache validation, and budgeted traversal;
  • backend_plugins/rag/approaches/lazy.py: OpenAI-compatible endpoint;
  • backend_plugins/rag/common/vectors.py: complete RagBase chunk snapshot;
  • backend_plugins/rag/flavors.yaml: runtime flavor parameters;
  • compare/flavors.yaml: explicit benchmark selection metadata;
  • atlas.consumer.yml: Atlas/LiteLLM model aliases.

The route remains the same type of backend plugin endpoint as every other approach:

POST /rag/lazy-graph-rag/v1/chat/completions

Atlas exposes lazy-graph-rag, lazy-graph-rag-fast, lazy-graph-rag-balanced, and lazy-graph-rag-wide through LiteLLM and Open WebUI. They carry experimental: true metadata. None is included when the comparison harness expands default.

3. Index Construction

The first query for a corpus performs these steps:

  1. Read a deterministic snapshot of all chunks in Weaviate collection RagBase.
  2. Compute a SHA-256 content fingerprint over the index algorithm version, chunk titles, and chunk text.
  3. Load the density-specific cache under /data/lazy-graph-rag/ when its version and fingerprint match, for example RagBase_graph_native.concepts-24.json.
  4. Otherwise extract concepts using deterministic token, identifier, and capitalized-phrase rules. No LLM is called.
  5. Create concept-to-chunk memberships.
  6. Add weighted undirected edges for concepts that co-occur in a chunk.
  7. Atomically replace that density-specific cache file in the lazy-graph-cache Compose volume.

The complete chunk snapshot is fingerprinted on each query, so an ingest that changes content invalidates the graph even when the chunk count is unchanged. Each max_concepts_per_chunk value gets an independent cache namespace, so switching between fast, balanced, and wide flavors does not evict another density. The named volume preserves matching indexes across backend restarts. A cold volume reset removes the caches and forces rebuilds. Corrupt or incompatible cache files are ignored and replaced. A one-shot Compose initializer assigns the named volume to Atlas's non-root backend user before the backend starts.

Index construction uses zero LLM calls. The response records cache hit/miss, index duration, chunk/concept/edge counts, and llm_index_calls: 0.

4. Query Phases

  1. Embed the question through the shared embed role.
  2. Run Weaviate BM25+dense hybrid search to obtain seed_k chunks.
  3. Extract concepts from the question and seed chunks with the same deterministic extractor used during indexing.
  4. Traverse weighted concept neighbors using a priority queue.
  5. Stop after at most relevance_budget visited concepts.
  6. Score chunks from vector-seed rank and visited concept membership.
  7. Keep at most max_context_chunks chunks.
  8. Stuff the selected evidence into the shared prompt.
  9. Generate once through the shared light_gen role.
  10. Return the standard answer, source block, and metrics footer plus structured rag_showcase.lazy_graph provenance.

The normal query path therefore makes two LiteLLM calls: one embedding call and one generation call. Concept extraction, graph construction, and traversal do not call an LLM or cloud service.

5. Tuning and Flavors

Alias relevance_budget seed_k max_context_chunks Concepts/chunk
lazy-graph-rag 24 8 8 24
lazy-graph-rag-fast 8 4 4 16
lazy-graph-rag-balanced 24 8 8 24
lazy-graph-rag-wide 64 16 12 32
  • relevance_budget is a hard cap on tested/expanded graph concepts.
  • seed_k controls the initial vector/lexical evidence fanout.
  • max_context_chunks caps final generation context.
  • max_concepts_per_chunk controls graph density and cache size.

The last knob changes the generated lazy index but does not require source corpus re-ingestion. Its flavor gets a distinct cache file at query time. Live validation alternated base, fast, balanced, and wide calls and confirmed that all three graph densities remained independently reusable.

Run an explicit comparison selection with:

MATRIX_MODELS=lazy-graph-rag-fast,lazy-graph-rag-balanced,lazy-graph-rag-wide \
  uv run python compare/run_matrix.py

6. Response and Evaluation Metadata

Non-streaming responses add a top-level rag_showcase.lazy_graph object while preserving the OpenAI chat-completion body and common rendered footer. The comparison collector stores this as approach_metadata rather than parsing it from display text.

Recorded fields include:

  • experimental status and cache hit/miss;
  • index duration and graph size;
  • relevance tests and configured budgets;
  • zero index-time LLM calls;
  • cache namespace.

The consumer-owned Atlas-backed matrix combines those operational fields with cold/warm cache state, latency, Ragas state, judge-panel scores, errors, and dataset/model/config provenance. Ragas and judge scores remain separate. The current Atlas evaluator returns numeric faithfulness and answer relevancy with explicit coverage; missing or failed metric rows are never replaced by judge scores or numeric zeroes.

7. Measured Results

The 2026-07-17 run used the same Atlas ingestion revision, generation role, embedding role, questions, and blinded judges for every approach. The complete artifacts are under docs/results/ and the generated per-query view is dataset-complexity-report.md.

Dataset Lazy rank Judge mean Mean latency Graph size Result
baseline_curated tied 3/7 3.92 5.51 s 30 chunks, 453 concepts, 7,523 edges Competitive, but vanilla and hybrid retrieval led.
graph_native 1/7 4.31 4.94 s 10 chunks, 162 concepts, 2,475 edges Won the aggregate and two individual questions.
cyber_threat_intel tied 2/7 3.00 8.12 s 66 chunks, 762 concepts, 13,949 edges Competitive on relation-heavy prompts; contextual RAG led.

Across the same rungs, default LightRAG averaged 12.61, 12.47, and 21.20 seconds; agentic retrieval averaged 10.77, 29.11, and 41.86 seconds. Lazy graph made exactly two model calls per query: one embedding and one final generation call. It made zero index-time model calls.

Cold deterministic index construction was 0.019 seconds for 30 baseline chunks and 0.028 seconds for 66 cyber chunks. The first end-to-end lazy calls include embedding, retrieval, graph build, and generation; the graph build itself remains negligible relative to model inference. Subsequent fingerprint/cache checks took roughly 0.002-0.010 seconds. A separate live flavor gate built base, fast, and wide graph densities, then confirmed warm hits for base/balanced and fast without cross-flavor rebuild churn.

These numbers do not establish universal superiority. The cyber aggregate winner was contextual RAG, and lazy graph lost several exact path questions where typed entity/relation extraction or high-recall chunk retrieval produced better evidence. The graph-native win nevertheless satisfies the prototype's keep criterion, so the implementation remains available for explicit selection.

8. Limitations and Decision

  • The concept extractor is intentionally lightweight; aliases, morphology, and domain-specific entity resolution are limited.
  • Co-occurrence is evidence of proximity, not a typed factual relationship.
  • The implementation currently uses the shared generation prompt rather than a claim-synthesis stage.
  • The steady path still scans all chunk text to verify the content fingerprint.
  • Results cover three bounded corpora and two local judges, not a broad benchmark.
  • Faithfulness coverage is incomplete on every rung (83% baseline, 63% graph-native, 50% cyber-threat), though answer relevancy is fully covered everywhere. See docs/results/ for the recorded Ragas scores (objective evaluator coverage is otherwise in place across all three rungs and every lazy-graph flavor, resolving the prior Atlas #596/#597 blocker).

Decision: retain the prototype as an experimental seventh approach, keep it excluded from default, and continue measuring it. It beat existing approaches on graph-native tasks and remained competitive on the cyber aggregate without added index-time LLM cost, so removal is not warranted. Promotion to a canonical default would require more datasets, stronger concept/entity resolution, and explicit typed-relation or community semantics.
