8.3. Notes Workspace

Notes Workspace is the flagship VMx example portfolio: one scenario, four idiomatic hosts, and one shared VM contract.

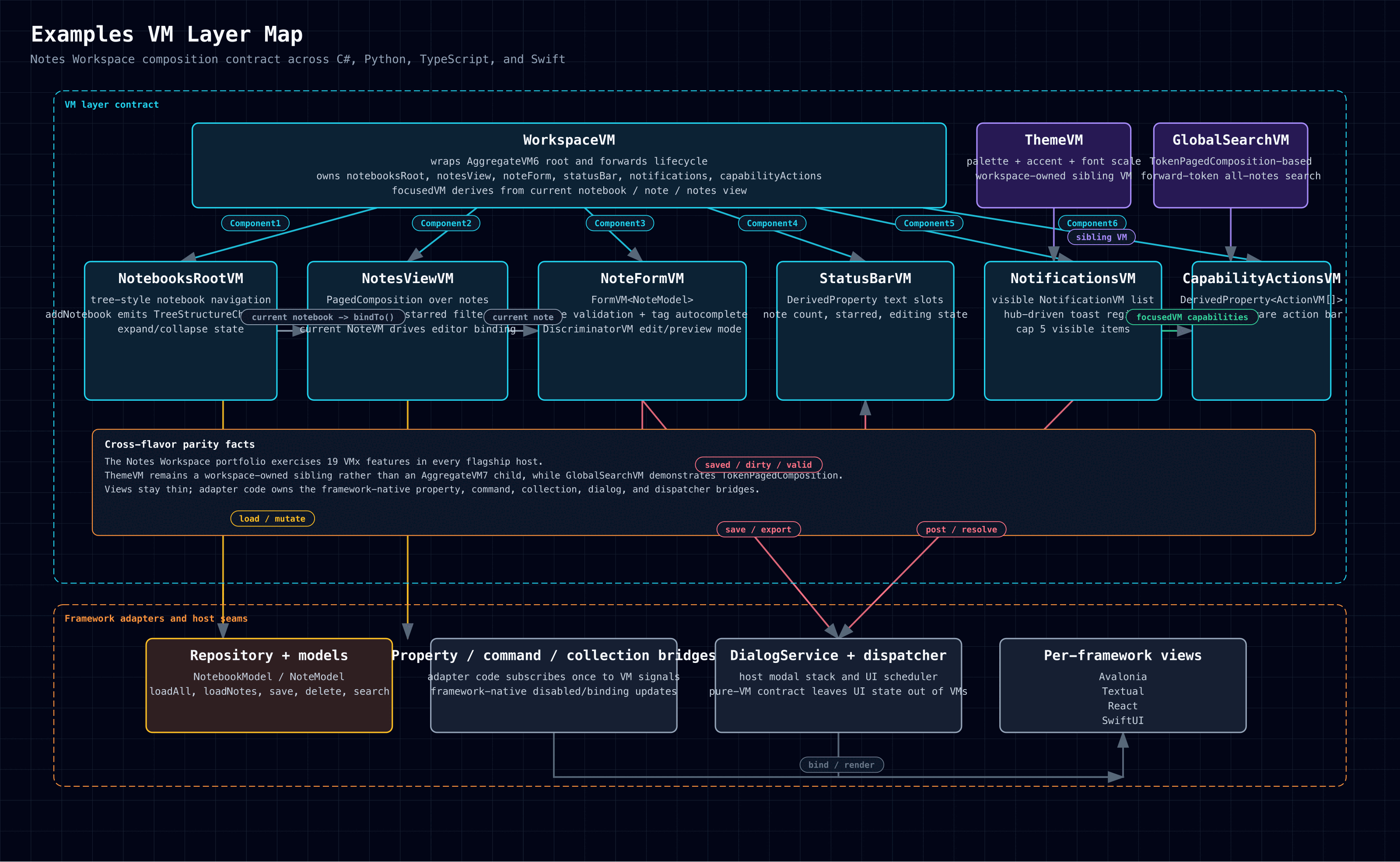

Examples VM Layer Map

Open the VM layer walkthrough · SVG · PNG

8.3.1. Canonical Sources

  • Cross-flavor parity matrix: examples/notes-showcase-parity.md
  • Shared behavioral scenarios, asserted by all four flagship suites: examples/notes-showcase-scenario.json (workspace lifecycle) and examples/notes-showcase-theme-scenario.json (THEME-001..THEME-005)
  • VM hierarchy diagram source: examples/assets/notes-showcase-vm-hierarchy.svg
  • Scenario proposal: spec/proposals/2026-05-29-notes-showcase-scenario.md

8.3.2. Flavor Hosts

  • C# / Avalonia: examples/csharp/avalonia/NotesShowcase/README.md
  • Python / Textual: examples/python/textual/notes_showcase/README.md
  • TypeScript / React: examples/typescript/react/notes-showcase/README.md
  • Swift / SwiftUI: examples/swift/notes-showcase/README.md

8.3.3. What It Exercises

The portfolio is the working example for the four current UI-backed flagship hosts:

  • notebook tree projection representing the HierarchicalVM capability
  • selectable notes list through CompositeVM.current
  • strict FormVM editing and validation
  • DerivedProperty status and enablement
  • SearchableState, paged notes, and token-paged global search
  • dialogs, notifications, confirmation flows, and theme state
  • edit/preview mode with DiscriminatorVM

8.3.4. Important Modeling Note

The notebooks tree in the current flagship apps is not built from direct HierarchicalVM subclasses. All four UI-backed examples use flat ComponentVM-based adapters that represent the HierarchicalVM capability and preserve the same tree messaging contract.

Use the parity matrix for the exact row-by-row feature coverage, then drill into the flavor README you care about for project layout and run commands.

8.3.5. Swift Foreground Contract

The Swift flagship uses VMx's DefaultDispatcher in production. Persistence and notification awaits may resume on any executor, but observable collection, selection, form, and command-state mutations complete through an awaited foreground-dispatch bridge. Its CI build enables complete strict-concurrency checking and promotes every concurrency warning to an error for both the VMx package and the full SwiftUI flagship.

8.3.6. Locale Scope

Notes Workspace is intentionally an en-US reference scenario. All hosts use the same English labels, seed content, validation messages, and notifications; the parity matrix therefore makes no translated-catalog claim. VMx still provides the injectable localization hook described in spec chapter 17, with behavior verified by the library conformance suites. Applications that need multiple locales supply their own host-native catalog adapter.
