6.3. Command Families

6.3.1. When To Use It

Use the command family when behavior should be executable, bindable, and reactively re-evaluated without baking that behavior into the VM hierarchy itself.

Start with RelayCommand; add composition or confirmation only when the workflow needs it.

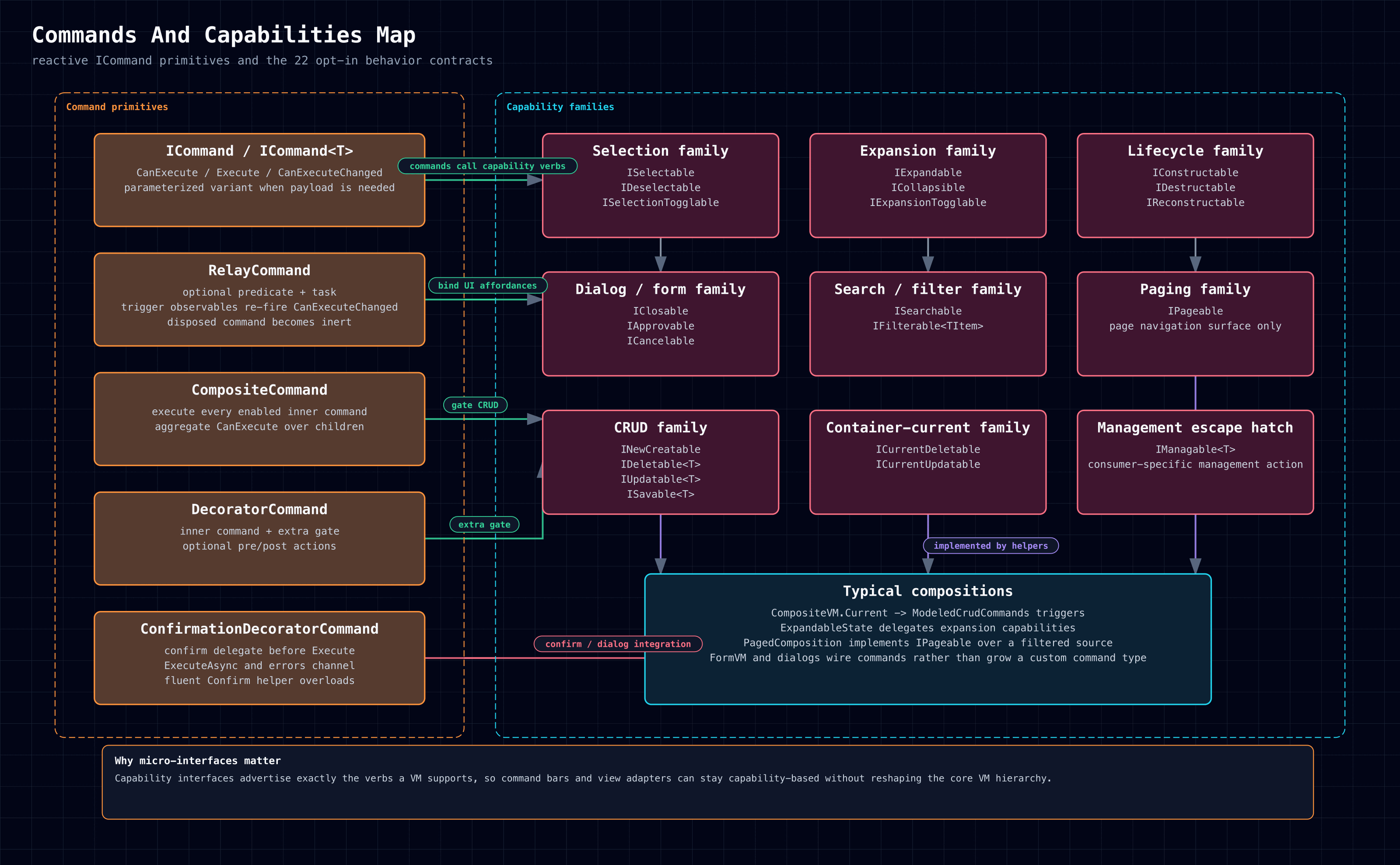

HTML · SVG · PNG

6.3.2. Shape And Ownership

The shipped command surface breaks down into a few layers:

• RelayCommand, parameterized RelayCommand<T>, and AsyncRelayCommand
• decorators: CompositeCommand, DecoratorCommand, ConfirmationDecoratorCommand
• fluent helpers: Confirm, PrecedeWith, SucceedWith, WrapWith
• ModeledCrudCommands for selection-driven create/update/delete bundles

Commands own their predicates, tasks, trigger subscriptions, and disposal inertness. They do not own VM lifecycle.

The fluent helpers apply to any command, so each one's result chains further. In Rust they come from the CommandExt trait (use vmx::CommandExt;), which every Command + Clone + 'static implements; RelayCommand keeps the same methods inherently, so its existing calls need no import. A command that is not Clone, or an Arc<dyn Command>, uses the helpers through an Arc. Pass NO_PREDICATE or NO_HOOK for an absent wrap_with argument:

use vmx::{AsyncValue, CommandExt, NO_HOOK, NO_PREDICATE};

let command = save
    .confirm(|| AsyncValue::ready(true))
    .wrap_with(NO_PREDICATE, Some(begin_busy), Some(end_busy))
    .succeed_with(refresh);

Each helper moves its receiver into the wrapper it returns; VMx command clones share state, so keep a clone to keep using the receiver directly.

AsyncRelayCommand is also a base command in every flavor (IAsyncCommand : ICommand), so it can be stored wherever a command is expected and wrapped by the composite and decorator commands. Through that base surface, Execute starts fire-and-forget execution without waiting for the async body; failures surface on the command's error channel. In Rust this is impl Command for AsyncRelayCommand, usable as Arc<dyn Command> or as the inner command of DecoratorCommand and ConfirmationDecoratorCommand.

Rust's error channel is error_stream(), a hot CommandErrorStream that delivers each fire-and-forget failure once as the original VmxError and completes on disposal. A panic caught by ConfirmationDecoratorCommand arrives as VmxError::Other carrying the panic message, because a panic payload is not a clonable error; execute_async().join() still returns the payload itself. The older errors() hubs carry only an "error" marker and are deprecated (ADR-0137). A confirmation AsyncValue produced by a panicking map or and_then callback ends execute_async().join() with that panic instead of blocking, and fire-and-forget execute publishes it on error_stream() (ADR-0138).

6.3.3. Lifecycle And Messaging

Commands become interesting when triggers are involved:

• predicates are pure gates for CanExecute
• tasks run only when predicates allow execution
• trigger emissions force re-evaluation and raise CanExecuteChanged
• imperative raise methods notify bindings when a predicate depends on non-observable host state
• disposed commands, including composite, decorator, and confirmation wrappers, become inert and report CanExecute == false
• fire-and-forget confirmation flows surface asynchronous failures on an error observable instead of swallowing them

Repeated command disposal, including during an in-flight async operation, follows the Disposal Contract: cancellation and terminal completion occur at most once.

A disposed wrapper also admits no inner work that has not started yet. A composite runs no later child after one of its children disposes it. A decorator disposed by its predicate or pre-action skips the inner command, but once the pre-action has run, its post-action still runs exactly once. A confirmation that resolves after disposal, whether it confirms, declines, or fails, runs nothing and emits nothing on errors. Wrappers never dispose their inner commands, which stay owned by their creator (ADR-0134).

6.3.4. Cross-Language Surface

Representative naming differences:

Concept	C#	Python	TypeScript	Swift	Rust
Builder entry	RelayCommand.Builder()	RelayCommand.builder()	RelayCommand.builder()	RelayCommand.builder()	RelayCommand::builder()
Trigger setter	Triggers(...)	triggers(...)	triggers(...)	triggers(...)	trigger(...)
Imperative raise	RaiseCanExecuteChanged()	raise_can_execute_changed()	raiseCanExecuteChanged()	raiseCanExecuteChanged()	raise_can_execute_changed()
Confirm helper	extension Confirm(...)	confirm(...) helper	confirm(...) helper	confirm(...) helper	confirm(...)

6.3.5. Triggers Or Imperative Raise?

Use a trigger when the predicate dependency already has an observable stream. The command owns that subscription and every trigger emission publishes one CanExecuteChanged notification.

Use the imperative method when host state changes through a non-observable API, or when a binding adapter explicitly knows that a predicate may have changed. The method publishes one notification only: it does not call the predicate, execute the task, or start an async command.

C#PythonTypeScriptSwiftRust

isDirty = true;
saveCommand.RaiseCanExecuteChanged();

is_dirty = True
save_command.raise_can_execute_changed()

isDirty = true;
saveCommand.raiseCanExecuteChanged();

isDirty = true
saveCommand.raiseCanExecuteChanged()

is_dirty.store(true, Ordering::SeqCst);
save_command.raise_can_execute_changed();

Repeated calls and trigger emissions remain additive. The same operation is available on parameterized and async relay commands, including while an async execution is in flight. Calls after disposal are safe no-ops.

The operation belongs to concrete relay commands. CompositeCommand and the decorators forward inner CanExecuteChanged notifications but do not expose a synthetic raise method. Retain the owning relay reference when decorating a command that needs imperative invalidation.

6.3.6. Example

Canonical relay-command shape:

TypeScript

const save = RelayCommand.builder()
  .predicate(() => form.isDirty && form.isValid)
  .task(() => {
    void form.approveAsync();
  })
  .triggers(currentChanged)
  .build();

The same normative command structure appears across all catalog-complete source flavors with casing and trait-import changes. Rust's command-disposal and thread-free confirmation convergence is recorded in the completed Rust parity ledger. The Notes Workspace editor and delete flows are concrete examples.

6.3.7. Common Pitfalls

• Depending on mutable state in CanExecute without a trigger that raises CanExecuteChanged or an explicit imperative raise at the mutation site.
• Polling every command on every UI render instead of subscribing to CanExecuteChanged and invalidating only when the predicate may have changed.
• Swallowing async confirmation or approve failures instead of observing their error channels.
• Re-implementing pre/post/confirm composition manually instead of using the decorator and fluent surfaces.

6.3.8. Related Primitives

• Composite Family
• FormVM
• Services, Messages & Dispatching
